오늘의 코딩순서

(폴더: oBootDbConnect) (줌 10:15쯤~

메인페이지 http://localhost:8382

  • jdbcMemberRepository.class + SpringConfig.class

(폴더: oBootBoard) (줌 10:44~

메인페이지 http://localhost:8383/list

  • build.gradle
  • application.yml +  BDto.class + BDao.interface + JdbcDao.class(현장 HW 1-1) + BExecuteCommand.class + BController.class + list.jsp + header.jsp

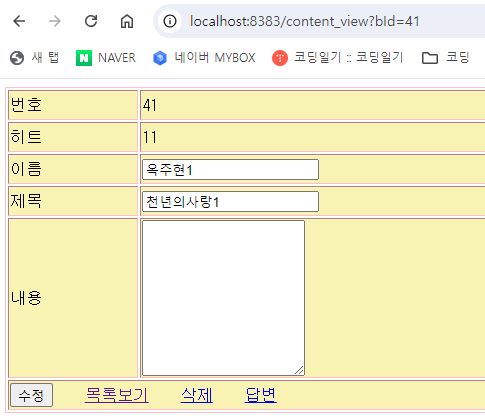

  • content_view.jsp + BController.class  + BExecuteCommand.class + JdbcDao.class(현장 HW 2)
  • JdbcDao.class(현장 HW 3)

오늘의 코딩 포인트

(폴더: oBootDbConnect)

  • JdbcMemberRepository.class ==> @Repository 주석처리후 아래 SpringConfig.class 작성
package com.oracle.oBootDbConnect.repository;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;
import javax.sql.DataSource;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.datasource.DataSourceUtils;
import org.springframework.stereotype.Repository;

import com.oracle.oBootDbConnect.domain.Member7;

//@Repository
public class JdbcMemberRepository implements MemberRepository {
	// JDBC 사용
	private final DataSource dataSource;

	@Autowired
	public JdbcMemberRepository(DataSource dataSource) {
		this.dataSource = dataSource;
	}

	private Connection getConnection() {
		return DataSourceUtils.getConnection(dataSource);
	}

    // 현장 HW 2-1
    // DB에 insert 되는 로직 만들기
	@Override
	public Member7 save(Member7 member7) {
		Connection conn = null;
		PreparedStatement pstmt = null;
		ResultSet rs = null;
		String sql = "insert into member7(id,name) values(member_seq.nextval,?)";
        	//id는 request 데이터라 들어오지 않았기 때문에, sequence 값으로 넘겨주기
		System.out.println("JdbcMemberRepository save sql->"+sql);

		try {
			conn = getConnection();
			pstmt = conn.prepareStatement(sql);
			pstmt.setString(1, member7.getName());
			pstmt.executeUpdate();
			return member7;

		} catch (Exception e) {
			throw new IllegalStateException();
		} finally {
			close(conn, pstmt, rs);
		}

	}

    // DB에 있는 내용을 가져와서 ArrayList에 넣기
	@Override
	public List<Member7> findAll() {
		Connection conn = null;
		PreparedStatement pstmt =null;
		ResultSet rs = null;
		String sql = "select * from member7";
		System.out.println("JdbcMemberRepository findAll() sql->"+sql);

		try {
			conn = getConnection();
			pstmt = conn.prepareStatement(sql);
			rs = pstmt.executeQuery();

			List<Member7> members = new ArrayList<>();
			while(rs.next()) {
				Member7 member = new Member7();
				member.setId(rs.getLong("id"));
				member.setName(rs.getString("name"));
				members.add(member);
			}
			return members;

		} catch (Exception e) {
			throw new IllegalStateException();
		} finally {
			close(conn, pstmt, rs);
		}
	}

		// 메모리 해제
	private void close(Connection conn , PreparedStatement pstmt , ResultSet rs)
	{
    	//JSP에서 한 방식으로 close를 해도 되고, 아래의 방식으로 해도 됨
		try {
			if (rs != null) rs.close();
		}   catch (SQLException e) {
				e.printStackTrace();
	    }

	    try {
	         if (pstmt != null) 	pstmt.close();
		}    catch (SQLException e) {
				e.printStackTrace();
	    }

	    try {
	         if (conn != null) 		close(conn);
		}    catch (SQLException e) {
				e.printStackTrace();
	    }
	}

	private void close(Connection conn) throws SQLException {
		DataSourceUtils.releaseConnection(conn, dataSource);

	}


}
  • SpringConfig.class
    Tip)
    • @Bean
      • @Component 를 포함하는 @Controller, @Service, @Repository 애노테이션이 아니면 Springbean 으로 자동 등록되지 않기 때문에, 따로 @Bean설정을 하고 SpringConfig를 넣어줘야 함
      • 이 부분의 설정을 잘 운영하면 다른 소프트웨어를 사용하려 할때도 유지보수가 용이해짐

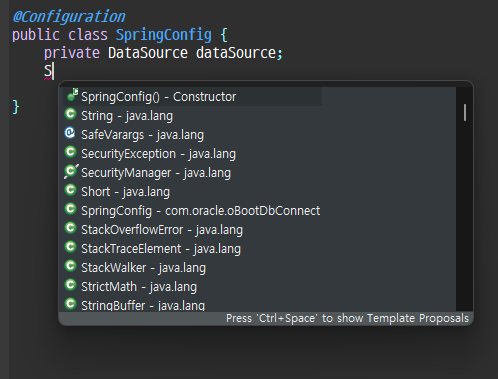

    • 생성자부분 설명 10:33분 부터 다시 보고 작성하기
      • return new MemoryMemberRepository(); => 입력한 값을 Memory에만 업로드하며, DB에는 저장되지 않음
      • return new JdbcMemberRepository(dataSource); => 입력한 값이 DB에도 업로드됨
package com.oracle.oBootDbConnect;

import javax.sql.DataSource;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.oracle.oBootDbConnect.repository.JdbcMemberRepository;
import com.oracle.oBootDbConnect.repository.MemberRepository;
import com.oracle.oBootDbConnect.repository.MemoryMemberRepository;

@Configuration
public class SpringConfig {
	private DataSource dataSource;
	public SpringConfig() {
		this.dataSource = dataSource;
	}

	@Bean
	public MemberRepository memberRepository() {
		return new MemoryMemberRepository(); 		// ==> Memory로 부품 교체할때 사용
		// ()안에 아무것도 없다는 것은 따로 설정한 생성자가 없기 때문에, 기본 생성자를 쓰겠다는 것

		//return new JdbcMemberRepository(dataSource); ==> Oracle로 부품 교체할때 사용

	}

}


(폴더: oBootBoard)

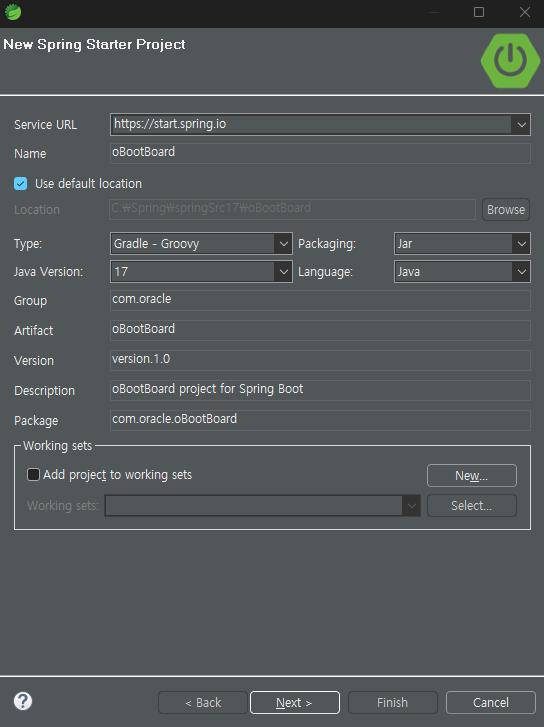

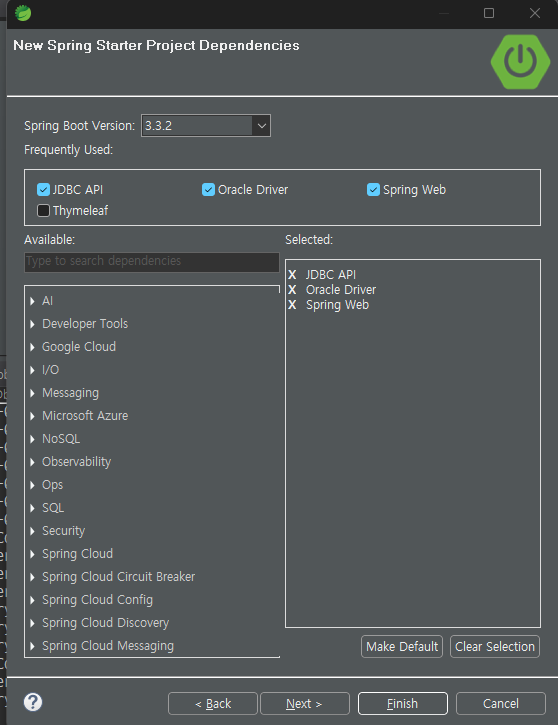

  • 새 Spring Starter 폴더 생성


  • build.gradle

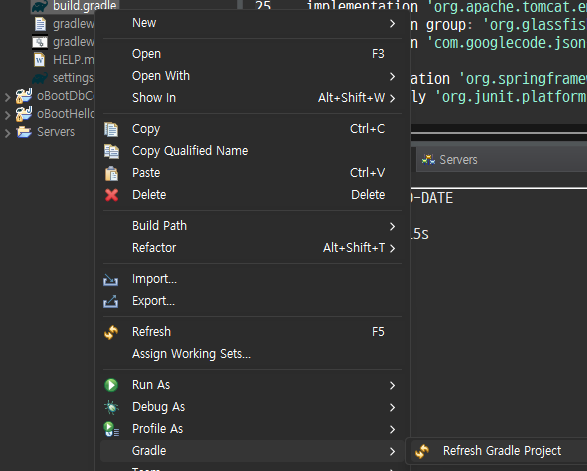

    로직에 아래 세 줄 추가하여 수동으로 프로그램 삽입하기 => build.gradle에 우클릭해서 Refresh 꼭 하기
    implementation 'org.apache.tomcat.embed:tomcat-embed-jasper'
    implementation group: 'org.glassfish.web', name: 'jakarta.servlet.jsp.jstl', version: '2.0.0'
    implementation 'com.googlecode.json-simple:json-simple:1.1.1'
plugins {
	id 'java'
	id 'org.springframework.boot' version '3.3.2'
	id 'io.spring.dependency-management' version '1.1.6'
}

group = 'com.oracle'
version = 'version.1.0'

java {
	toolchain {
		languageVersion = JavaLanguageVersion.of(17)
	}
}

repositories {
	mavenCentral()
}

dependencies {
	implementation 'org.springframework.boot:spring-boot-starter-jdbc'
	implementation 'org.springframework.boot:spring-boot-starter-web'
	runtimeOnly 'com.oracle.database.jdbc:ojdbc11'

	implementation 'org.apache.tomcat.embed:tomcat-embed-jasper'
    implementation group: 'org.glassfish.web', name: 'jakarta.servlet.jsp.jstl', version: '2.0.0'
    implementation 'com.googlecode.json-simple:json-simple:1.1.1'

	testImplementation 'org.springframework.boot:spring-boot-starter-test'
	testRuntimeOnly 'org.junit.platform:junit-platform-launcher'
}

tasks.named('test') {
	useJUnitPlatform()
}




  • application.yml(class 아니고 New File임!) => 줄 잘 안맞춰주면 인식못함
    아래 로직 저장후, main폴더에 WEB-INF폴더 만들고, 그 안에 views 폴더 만들기
server:
  port: 8383
# Oracle Connect
spring:
  datasource:
    driver-class-name: oracle.jdbc.OracleDriver
    url: jdbc:oracle:thin:@localhost:1521/xe
    username: scott
    password: tiger

  # View Resolver
  mvc:
    view:
      prefix: /WEB-INF/views/
      suffix: .jsp

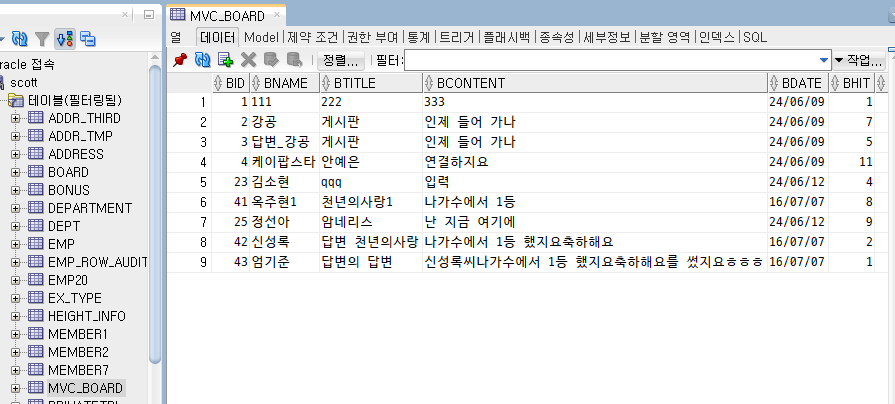

  • MVC Board TBL 만들기

mvc_board.txt
0.00MB

  • BDto.class ==> DTO에 해당
    Tip)
    • getter and setter 방식 + 생성자 방식으로 DTO만들기
package com.oracle.oBootBoard.dto;

import java.sql.Timestamp;

public class BDto {
	int			bId;
	String		bName;
	String		bTitle;
	String		bContent;
	Timestamp	bDate;
	int			bHit;
	int			bGroup;
	int			bStep;
	int 		bIndent;

	public BDto() {

	}

	public BDto(int bId,	String bName,	String bTitle, String bContent,
				Timestamp bDate,	int bHit,	int	bGroup,
				int bStep,	int bIndent) {

		this.bId = bId;
		this.bName = bName;
		this.bTitle = bTitle;
		this.bContent = bContent;
		this.bDate = bDate;
		this.bHit = bHit;
		this.bGroup = bGroup;
		this.bStep = bStep;
		this.bIndent = bIndent;

	}

	public int getbId() {
		return bId;
	}

	public void setbId(int bId) {
		this.bId = bId;
	}

	public String getbName() {
		return bName;
	}

	public void setbName(String bName) {
		this.bName = bName;
	}

	public String getbTitle() {
		return bTitle;
	}

	public void setbTitle(String bTitle) {
		this.bTitle = bTitle;
	}

	public String getbContent() {
		return bContent;
	}

	public void setbContent(String bContent) {
		this.bContent = bContent;
	}

	public Timestamp getbDate() {
		return bDate;
	}

	public void setbDate(Timestamp bDate) {
		this.bDate = bDate;
	}

	public int getbHit() {
		return bHit;
	}

	public void setbHit(int bHit) {
		this.bHit = bHit;
	}

	public int getbGroup() {
		return bGroup;
	}

	public void setbGroup(int bGroup) {
		this.bGroup = bGroup;
	}

	public int getbStep() {
		return bStep;
	}

	public void setbStep(int bStep) {
		this.bStep = bStep;
	}

	public int getbIndent() {
		return bIndent;
	}

	public void setbIndent(int bIndent) {
		this.bIndent = bIndent;
	}



}

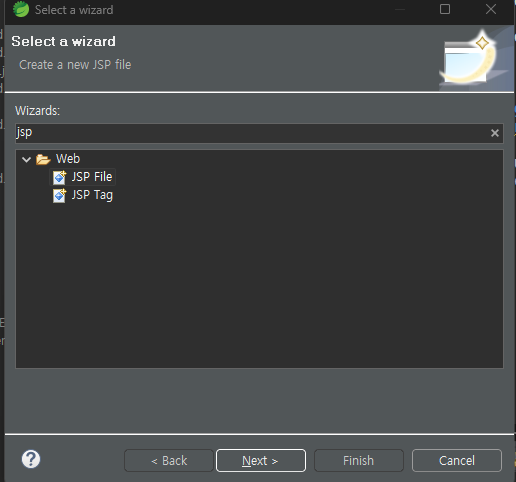

  • header.jsp
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt"%>
<link href="resources/css/board.css" rel="stylesheet" type="text/css">

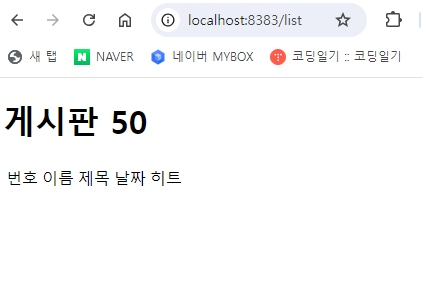

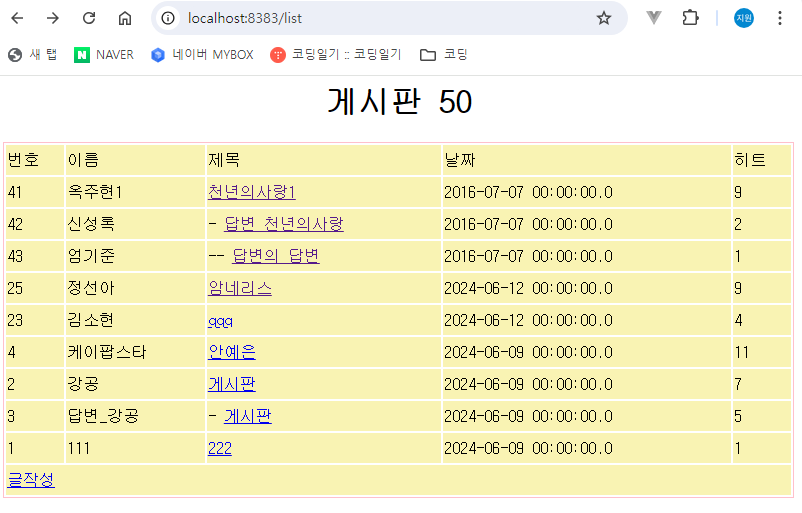

  • list.jsp ==> View에 해당, 메인 페이지 조회방법
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ include file="header.jsp" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<h1>게시판 ${count}</h1>
	<table>
		<tr>
			<td>번호</td><td>이름</td><td>제목</td><td>날짜</td><td>히트</td>
		</tr>
		<c:forEach items="${boardList }" var="mvc_board">
			<tr>
				<td>${mvc_board.bId}</td>
				<td>${mvc_board.bName}</td>
				<td>
					<c:forEach begin="1" end="${mvc_board.bIndent}">↳</c:forEach>
													<!-- ↳부분은 이미지도 삽입 가능 -->
							<a href="content_view?bId=${mvc_board.bId}">${mvc_board.bTitle}</a>
				</td>
						<td>${mvc_board.bDate}</td>
						<td>${mvc_board.bHit}</td>
			</tr>
		</c:forEach>
			<tr>
				<td colspan="5"> <a href="write_view">글작성</a> </td>
			</tr>
    </table>
</body>
</html>

  • BController.class
package com.oracle.oBootBoard.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

import com.oracle.oBootBoard.command.BExecuteCommand;

@Controller
public class BController {
	private static final Logger logger = LoggerFactory.getLogger(BController.class);
	private final BExecuteCommand bExecuteService;
	@Autowired
	public BController(BExecuteCommand bExecuteService) {
        this.bExecuteService = bExecuteService;
	}

	@RequestMapping("list")
    	//list.jsp와 연결
	public String list(Model model) {
        logger.info("list start...");
        bExecuteService.bListCmd(model);
        model.addAttribute("count","50");
		return "list";

	}


}
  • BExecuteCommand.class ==>Service에 해당
package com.oracle.oBootBoard.command;

import java.util.ArrayList;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.ui.Model;

import com.oracle.oBootBoard.dao.BDao;
import com.oracle.oBootBoard.dto.BDto;

@Service
public class BExecuteCommand {
	private final BDao jdbcDao;

	@Autowired
	public BExecuteCommand(BDao jdbcDao) {
		this.jdbcDao = jdbcDao;
	}

	public void bListCmd(Model model) {
		// Dao 연결		//list.jsp와 연결
		ArrayList<BDto> boardDtoList = jdbcDao.boardList();
		System.out.println("BListCommand boardDtoList.size()->"+boardDtoList.size());
		model.addAttribute("boardList",boardDtoList);
			// call by reference로 이동

	}
}
  • BDao.interface
package com.oracle.oBootBoard.dao;

import java.util.ArrayList;
import com.oracle.oBootBoard.dto.BDto;

public interface BDao {
	public ArrayList<BDto> boardList();
	public BDto contentView(String strId);
}

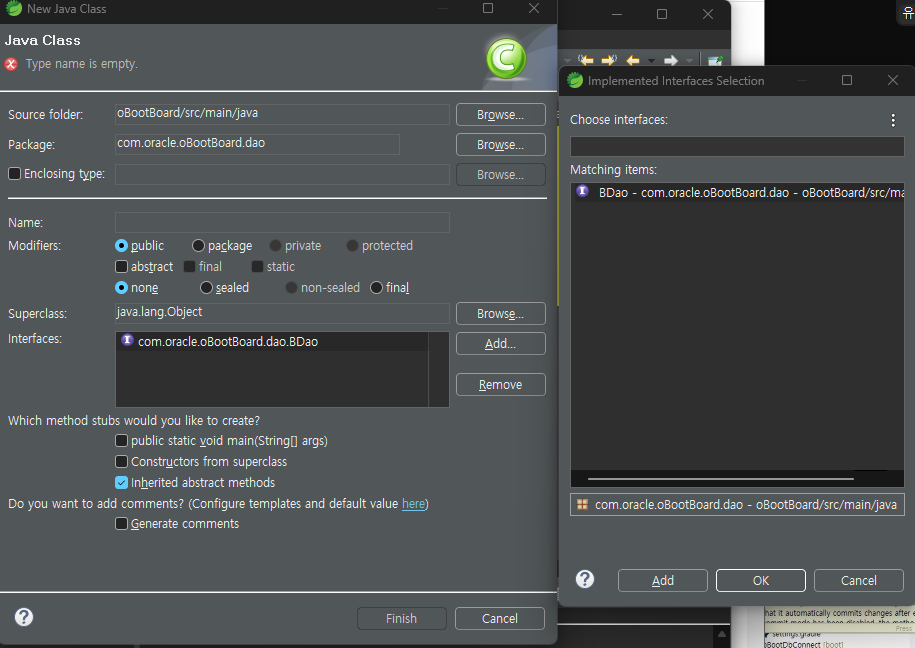

  • JdbcDao.class ==> 위의 interface를 상속받음 (현장 HW 1-1)

package com.oracle.oBootBoard.dao;


import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Timestamp;
import java.util.ArrayList;

import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.datasource.DataSourceUtils;
import org.springframework.stereotype.Repository;

import com.oracle.oBootBoard.dto.BDto;

@Repository
public class JdbcDao implements BDao {

	//JDBC 사용
	private final DataSource dataSource;

	@Autowired
	public JdbcDao(DataSource dataSource) {
		this.dataSource = dataSource;
	}

	private Connection getConnection() {
		return DataSourceUtils.getConnection(dataSource);
	}

	@Override
	public ArrayList<BDto> boardList() {
		ArrayList<BDto> bList = new ArrayList<BDto>();
		Connection connection = null;
		PreparedStatement preparedStatement = null;
		ResultSet resultSet = null;
		System.out.println("BDao boardList start...");

		// (0801)현장 HW 1
		try {
			connection = getConnection();
			String query = "SELECT bId, bName, bTitle, bContent, bDate, bHit,"
					+ "				bGroup, bStep, bIndent"
					+ "		From	mvc_board order by bGroup desc, bStep asc";

			preparedStatement = connection.prepareStatement(query);
			System.out.println("BDao query->"+query);
			resultSet = preparedStatement.executeQuery();

			while (resultSet.next()) {
				int bId = resultSet.getInt("bId");
				String bName = resultSet.getString("bName");
				String bTitle = resultSet.getString("bTitle");
				String bContent = resultSet.getString("bContent");
				Timestamp bDate = resultSet.getTimestamp("bDate");
				int bHit = resultSet.getInt("bHit");
				int bGroup = resultSet.getInt("bGroup");
				int bStep = resultSet.getInt("bStep");
				int bIndent = resultSet.getInt("bIndent");
				BDto dto = new BDto(bId, bName, bTitle, bContent, bDate, bHit,
									bGroup, bStep, bIndent);
				bList.add(dto);

			}

		} catch (SQLException e) {
			System.out.println("list dataSource->" + e.getMessage());
			e.printStackTrace();
		} finally {
			try {
				if (resultSet != null)				resultSet.close();
				if (preparedStatement != null)		preparedStatement.close();
				if (connection != null)				connection.close();
			} catch (Exception e2) {
				System.out.println("e2.getMessage->"+e2.getMessage());
				e2.printStackTrace();
			}
		}
		return bList;
	}





  • content_view.jsp ==> 글 제목 눌렀을때 내용이 나오도록 DB와 연결하여 조회(select)하기
<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ include file="header.jsp"   %>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<form action="modify" method="post">
		<input type="hidden" name="bId" value="${mvc_board.bId}">
	    <table border="1">
			<tr>
				<td> 번호 </td><td> ${mvc_board.bId} </td>
			</tr>
			<tr>
				<td> 히트 </td><td> ${mvc_board.bHit} </td>
			</tr>
			<tr>
				<td> 이름 </td><td><input type="text" name="bName" value="${mvc_board.bName}"></td>
			</tr>
			<tr>
				<td> 제목 </td>
				<td> <input type="text" name="bTitle" value="${mvc_board.bTitle}"></td>
			</tr>
			<tr>
				<td> 내용 </td>
				<td> <textarea rows="10" name="bContent" >${mvc_board.bContent}</textarea></td>
			</tr>
			<tr >
				<td colspan="2"> <input type="submit" value="수정"> &nbsp;&nbsp;
				<a href="list">목록보기</a> &nbsp;&nbsp;
				<a href="delete?bId=${mvc_board.bId}">삭제</a> &nbsp;&nbsp;
				<a href="reply_view?bId=${mvc_board.bId}">답변</a></td>
			</tr>
	    </table>
	</form>

</body>
</html>
  • BController.class
package com.oracle.oBootBoard.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

import com.oracle.oBootBoard.command.BExecuteCommand;

import jakarta.servlet.http.HttpServletRequest;

@Controller
public class BController {
	private static final Logger logger = LoggerFactory.getLogger(BController.class);
	private final BExecuteCommand bExecuteService;
	@Autowired
	public BController(BExecuteCommand bExecuteService) {
        this.bExecuteService = bExecuteService;
	}

	@RequestMapping("/content_view")
		//content_view.jsp와 연결
	public String content_view(HttpServletRequest request, Model model) {
		System.out.println("content_view start...");

		model.addAttribute("request",request);
        			// 이름 request  객체 request
		bExecuteService.bContentCmd(model);

		return "content_view";
	}


}
  • BExecuteCommand.class
package com.oracle.oBootBoard.command;

import java.util.ArrayList;
import java.util.Map;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.ui.Model;

import com.oracle.oBootBoard.dao.BDao;
import com.oracle.oBootBoard.dto.BDto;

import jakarta.servlet.http.HttpServletRequest;

@Service
public class BExecuteCommand {
	private final BDao jdbcDao;

	@Autowired
	public BExecuteCommand(BDao jdbcDao) {
		this.jdbcDao = jdbcDao;
	}


	public void bContentCmd(Model model) {
		System.out.println("BExecuteCommand bContentCmd start...");
		// model을 Map으로 전환 	//content_view.jsp와 연결
		Map<String, Object> map = model.asMap();
		HttpServletRequest request = (HttpServletRequest)map.get("request");
			// BController의 model.addAttribute("request",request); 와 이어짐
			// String request(key값)을 주면 객체 request를 돌려줌(Map 방식)

		String bId = request.getParameter("bId");
		BDto board = jdbcDao.contentView(bId);

		model.addAttribute("mvc_board",board);
        // Tip: 어떤 것과 연결된 것인지 알아볼수 있게, TBL명으로 함
	}
  • JdbcDao.class(현장 HW 2)
package com.oracle.oBootBoard.dao;


import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Timestamp;
import java.util.ArrayList;

import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.jdbc.datasource.DataSourceUtils;
import org.springframework.stereotype.Repository;

import com.oracle.oBootBoard.dto.BDto;

@Repository
public class JdbcDao implements BDao {

	//JDBC 사용
	private final DataSource dataSource;

	@Autowired
	public JdbcDao(DataSource dataSource) {
		this.dataSource = dataSource;
	}

	private Connection getConnection() {
		return DataSourceUtils.getConnection(dataSource);
	}

		// (0801)현장 HW 2 => content_view.jsp와 연결
	@Override
	public BDto contentView(String strId) {
		BDto bDto = null;
		Connection connection = null;
		PreparedStatement preparedStatement = null;
		ResultSet resultSet = null;
		upHit(strId);

		System.out.println("contentView start...");

		try {
			connection = getConnection();
			String query = "select * from mvc_board where bId = ?";
   		// ?값을 PK가 아닌 것으로 넣을 때는, multi row로 취급해야하며, do-while문을 사용해서 오류를 잡아야함
			preparedStatement = connection.prepareStatement(query);
			preparedStatement.setInt(1, Integer.parseInt(strId));
			resultSet = preparedStatement.executeQuery();

			if (resultSet.next()) {
				int bId = resultSet.getInt("bId");
				String bName = resultSet.getString("bName");
				String bTitle = resultSet.getString("bTitle");
				String bContent = resultSet.getString("bContent");
				Timestamp bDate = resultSet.getTimestamp("bDate");
				int bHit = resultSet.getInt("bHit");
				int bGroup = resultSet.getInt("bGroup");
				int bStep = resultSet.getInt("bStep");
				int bIndent = resultSet.getInt("bIndent");
				bDto = new BDto(bId, bName, bTitle, bContent, bDate, bHit,
						bGroup, bStep, bIndent);
			}

		} catch (SQLException e) {
			e.printStackTrace();

		}
		return bDto;
	}




  • JdbcDao.class(현장 HW 3)
	// (0801)현장 HW 3. 히트수 올리기
	private void upHit(String bId) {
		Connection connection = null;
		PreparedStatement preparedStatement = null;
		System.out.println("upHit start...");

		try {
			connection = getConnection();
			String query = "update mvc_board set bHit = bHit + 1 where bId = ?";
			preparedStatement = connection.prepareStatement(query);
			preparedStatement.setString(1, bId);

			int rn = preparedStatement.executeUpdate();

		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			try {
				if (preparedStatement != null)		preparedStatement.close();
				if (connection != null)				connection.close();

			} catch (Exception e2) {
				e2.printStackTrace();
			}
		}

	}


질문목록




수업교재






오늘의 숙제

'Spring' 카테고리의 다른 글

2024_08_06_화~08_07_수  (0) 2024.08.06
2024_08_05_월~08_06_화  (0) 2024.08.05
2024_08_02_금  (0) 2024.08.02
2024_07_31_수  (0) 2024.07.31
2024_07_30_화  (0) 2024.07.30
